In the construction and mining sectors, sand and aggregate production lines form the backbone of infrastructure development. Efficiently designed production lines not only ensure a consistent supply of high-quality aggregates but also reduce operational costs, minimize downtime, and enhance overall plant productivity. Whether dealing with granite, limestone, or quartz, selecting the right equipment and planning a proper layout are critical for maximizing efficiency. This article explores key layout and design considerations for high-efficiency sand and aggregate production lines, with a focus on granite crusher plant, limestone crushing plant, and quartz crusher applications.
Understanding the Basics of a Sand and Aggregate Production Line

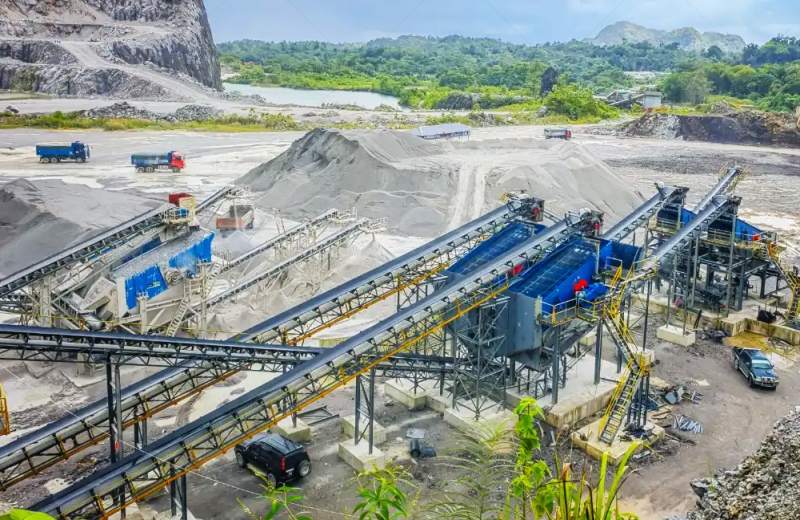

A typical sand and aggregate production line includes several stages: raw material feeding, primary crushing, secondary and tertiary crushing, screening, washing, and material storage. The goal is to produce different sizes and grades of sand and aggregate suitable for concrete, asphalt, road construction, and other building applications.
-
Primary Crushing: This is the first step where raw rocks such as granite, limestone, and quartz are broken down into manageable sizes. Equipment like jaw crushers and impact crushers are commonly used in this stage. For instance, a granite crusher plant often starts with a jaw crusher to handle large boulders.
-

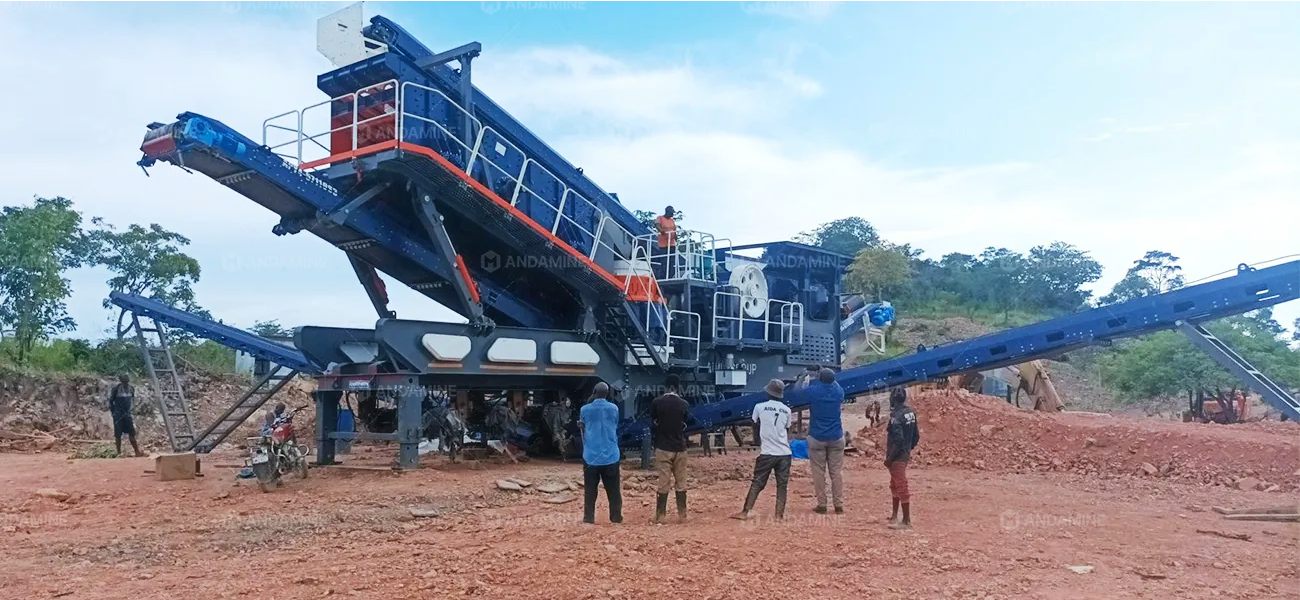

Secondary and Tertiary Crushing: These stages further reduce the material to the required size using cone crushers, impact crushers, or hammer crushers. A limestone crushing plant typically relies on secondary cone crushers for fine crushing and uniform particle size.
-
Screening: Vibrating screens separate materials into various size fractions, ensuring consistent quality and eliminating oversized rocks.
-
Washing and Sand Processing: To remove clay, silt, and other impurities, washing systems and sand classifiers are often incorporated. This step is especially important for producing high-quality quartz sand. A quartz crusher combined with a washing line ensures pure, clean material suitable for specialized applications.
Key Design Considerations
Material Type and Hardness
The layout must accommodate the physical characteristics of the raw material. Granite, being hard and abrasive, requires durable crushers and a robust feeding system. Limestone is softer and less abrasive but often requires careful handling to prevent over-crushing. Quartz, due to its high hardness and brittleness, demands precise crushing and screening to minimize fines generation and maintain quality. Choosing the right crusher for each material type, such as a jaw crusher for granite, a cone crusher for limestone, or a vertical shaft impact crusher for quartz, is crucial.
Crusher Placement and Workflow Efficiency

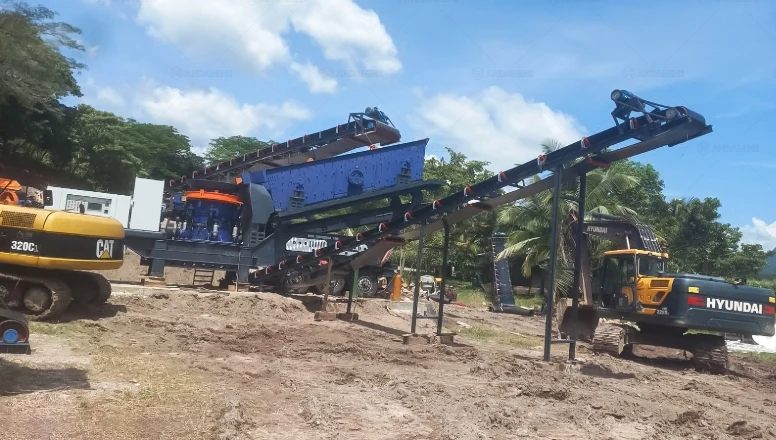

Efficient layout ensures smooth material flow with minimal backtracking. Primary crushers should be located close to the raw material source, while secondary and tertiary crushers, screens, and washing systems should follow a logical sequence. For example, a granite crusher plant layout often places the primary jaw crusher near the quarry face, followed by belt conveyors leading to secondary crushers and screening units. This minimizes material transport distance and reduces energy consumption.
Belt Conveyor System Optimization
Belt conveyors connect different stages of the production line. Properly designed conveyor angles, lengths, and capacities prevent bottlenecks and reduce energy use. It is essential to calculate the throughput requirement to ensure the belt system matches the output of primary and secondary crushers. For a limestone crushing plant, which may produce large volumes per hour, conveyors must be designed to handle both coarse and fine fractions efficiently.
Screening and Classification Strategy
The number and type of screens directly affect product quality. Multi-deck vibrating screens separate materials into different size grades, while sand classifiers remove fine particles. In a quartz crusher application, precise screening is critical to achieve uniform sand size, which is necessary for glass, electronics, and other industrial uses. Arranging screens in a tiered manner reduces the footprint of the plant while improving efficiency.
Space Utilization and Plant Footprint
Space constraints are a common challenge, particularly in urban or remote areas. Optimizing plant layout ensures maximum production in minimal space. Compact arrangements reduce material transport distances, facilitate easier maintenance, and lower infrastructure costs. Modular designs allow sections of the plant, such as crushing, screening, or washing units, to be added or removed according to production needs.
Maintenance Access and Safety
Efficient layout also considers equipment accessibility for maintenance. Crushers, screens, and conveyors should have sufficient clearance for technicians to perform routine inspections and repairs. Safety walkways, emergency stops, and dust control measures are essential, particularly in high-volume operations like granite crusher plants or limestone crushing plants.
Integration of Automation and Monitoring
Modern sand and aggregate production lines increasingly incorporate automation and monitoring systems. Sensors and control panels allow operators to adjust crusher settings, monitor output, and detect potential issues in real time. For quartz crusher systems producing high-value materials, automated control ensures consistent quality and reduces material wastage.
Environmental Considerations
Dust, noise, and water management are critical environmental concerns. Enclosures around crushers, dust suppression sprays, and water recycling in washing units minimize environmental impact. Efficient layout reduces dust propagation and helps meet regulatory requirements. For limestone and quartz processing, controlling dust is particularly important to protect both workers and equipment.
Conclusion
Designing a high-efficiency sand and aggregate production line requires a holistic approach that considers material characteristics, crusher selection, workflow optimization, screening strategy, and environmental impact. Properly planned layouts for granite crusher plants, limestone crushing plants, and quartz crushers enhance operational efficiency, reduce energy consumption, and ensure consistent product quality. By integrating modern automation, precise screening, and smart plant design, manufacturers can maximize output, minimize downtime, and meet the increasing demand for high-quality sand and aggregates in construction and industrial applications.
A well-designed production line is not only a technical necessity but also a strategic advantage, positioning manufacturers to compete effectively in both domestic and global markets.
